Description

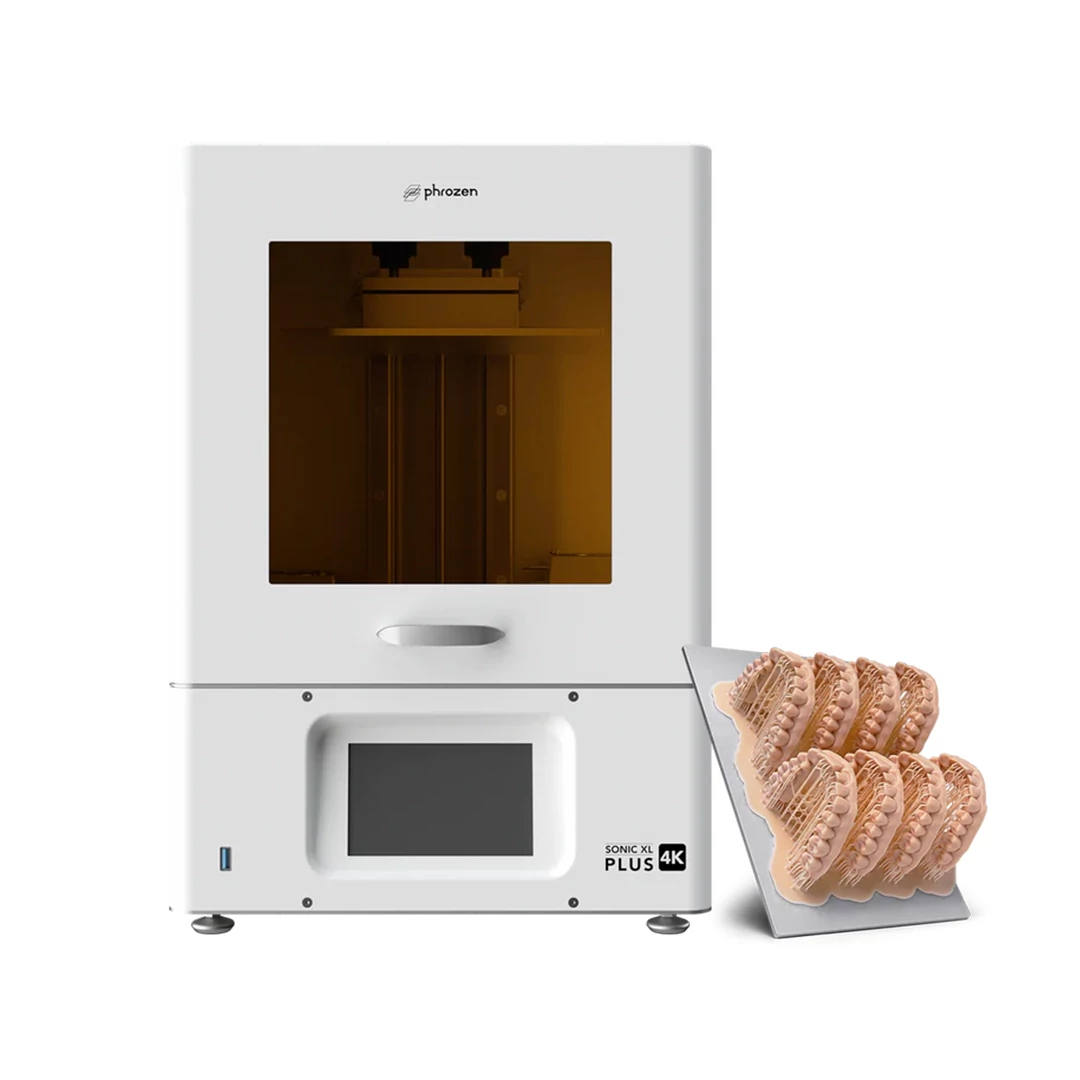

Sonic XL 4K PLUS LCD 3D Printer
Enhance Your Production of Digital Models & Dental Prostheses Phrozen has been elevating the LCD 3D printing technology to a whole new level and is now applying it in the dental field. With a larger printing volume and impeccable precision, Sonic XL 4K PLUS ensures excellent printing quality each time. On top of that, Sonic XL 4K PLUS features more robust operation to withstand the demands of large batch high-precision dental 3D printing.
Add-On Heater for Stable Printing Environment
Equipped with a constant heater to maintain printing temperature at the optimal 30°C to ensure stable model formations. A heating system upgrade aims for better heat distribution, mitigating any overheating damage and boosting print success rates.
Boost Efficiency With a Larger Building Plate
With a 9.3" LCD panel, Sonic XL 4K PLUS provides a larger building plate to increase printing capacity and efficiency.
Sonic 4K 2022 is equipped with 35 µm high XY resolution allowing dental professionals to print dental models and other restorative dentistry applications with extreme smoothness. Bundled with the Phrozen Dental Synergy (DS) Slicer, which further simplifies your dental workflow with its AI-powered printing support and auto-orientation.
Details
• 35 micron XY resolution
• Exceptional print accuracy & speed
• Built-in heater and air purifier
• Wide materials compatibility with validated resin settings
Specs
Technology: LCD
LCD Specification: 6.1” 4K Mono-LCD
Light Source: 405nm ParaLED® 3.0 Module
Z-Axis: Dual Linear Rails (Ball Screws)
Printer Size: 28 x 28 x 46.5 cm
Printer Weight: 14.9 kg
Printing Volume: 13.34 x 7.46 x 20 cm
XY Resolution: 35 µm
Layer Thickness: 0.01-0.30 mm
Max. Printing Speed: Up to 90mm/hr
System: Phrozen OS
Operation: 5in Touch Panel
Slicer Software: Phrozen DS Slicer
Connectivity: USB | Ethernet | WiFi
Compatible File Format: .ZIP
Power Requirement: AC100-240V : 50-60HZ
Power Supply: 150W
Cooling System: SIngle Cooling Fan
Other System: Air Purifier | Heater
